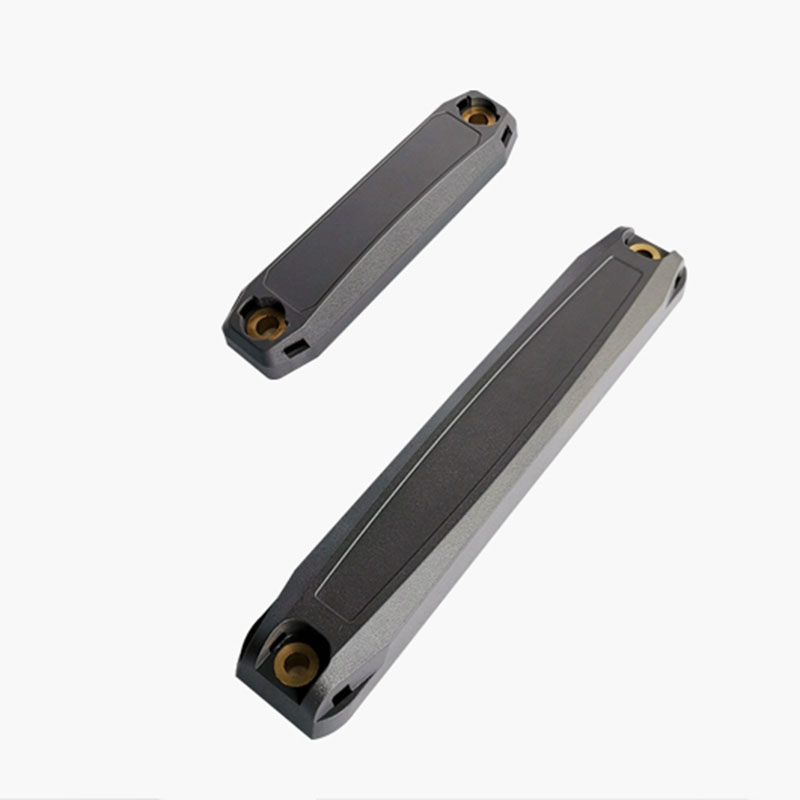

    86*22 UHF RFID Tag

    dimensions: 86.5 x 22.5 x 8.5 mm

    Operating frequency: 865-928MHz

    agreement: ISO18000-6C(EPC Class 1 Gen 2)

    chip: Monza4QT

    Memory Capacity: (EPC:128bit；; User 512bit； TID 96bit)

    Specification
    Product Model FT-8622
    Performance index
    Working mode Read/write
    protection rating IP55
    Applicable environment The best effect is to install it on the metal surface.
    Tag reading distance
    Reading distance Metal surface :10M
    Non-metallic surface :4M
    Mechanical and electrical performance
    Material ABS
    Working temperature -35oC to 85oC
    Storage temperature -35°C to 85°C
    Installation method Screws, adhesives, ties
    Weight 20g
    Packing specification 168 in a single box
    Boxed size 360 * 260 * 100 mm;
    Weight 4.2kg
