R2000 Fixed Reader
| Model | FF-701 |
| Protocol | ISO18000-6C(EPC Class1Gen2), ISO18000-6B |
| Frequency | 865-868MHZ(EU),902-928MHZ(US) |
| RF output | 0~33dBm(adjustable) |
| Data interface | RS232,RS485, RJ45,Wiegand 26/34 |
| Frequency modulation method | Broad spectrum frequency modulation (FHSS) or fixed frequency, software settings |
| Reading speed | multi-tag 500pcs /second |
| Reading speed | single tags average reading is less than 6ms/64bits |
| Read distance | 1-25M(Depend on antenna and tag) |
| Protection level | IEC IP56 |
| Read Indication | Buzzer and LED |

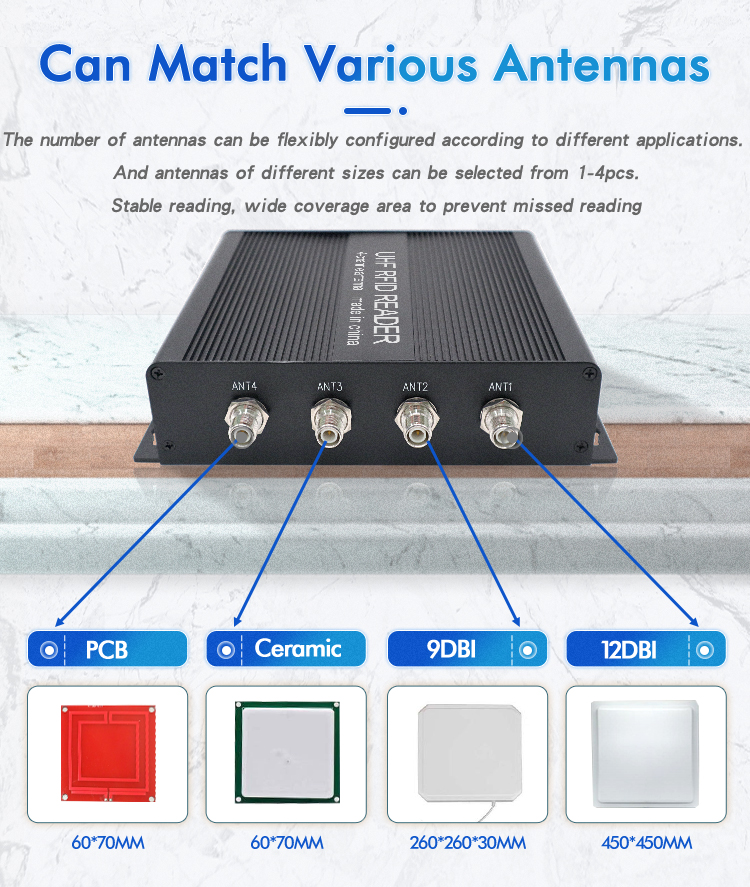

| Antenna | External antenna, 1-4 antenna optional |
| Power supply | 9-16V |
| GPIO | relay；trigger |
| Application software | Provide demo and SDK( VC,C#, java,VS,Delphi) |
| aximum receiver sensitivity | -82 dBm; Maximum return loss: 10 DBm |
| Communication rate | Serial port 9600~115200bps, RJ45 10Mbps |
| Product Size | 204*164*50mm |
| N/W | 0.96KG |
| Humidity | 5% - 95%(Non-condensing) |
| Working temp | －20℃~＋80℃ |
