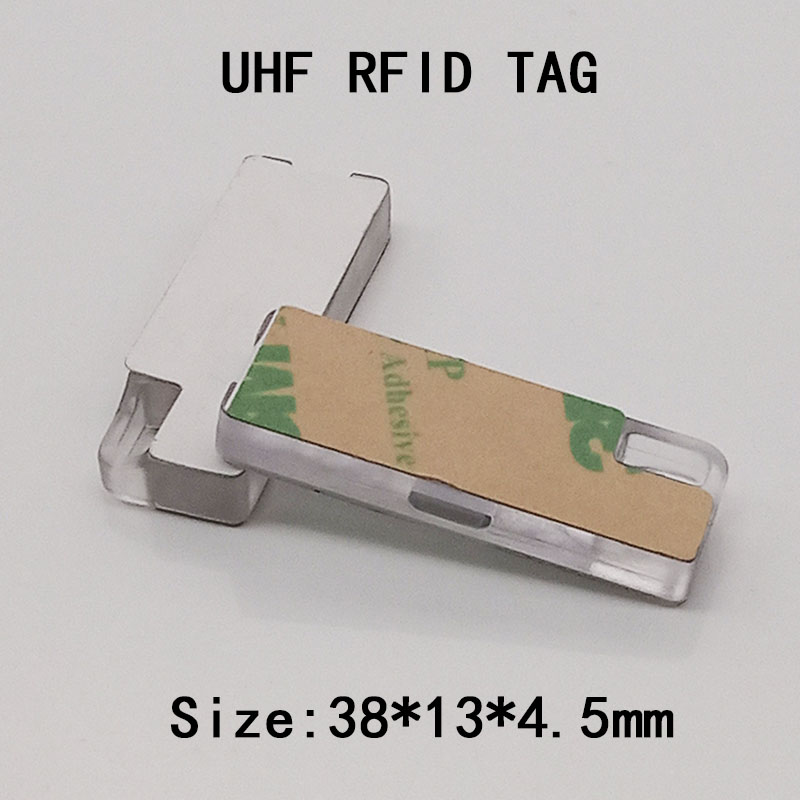

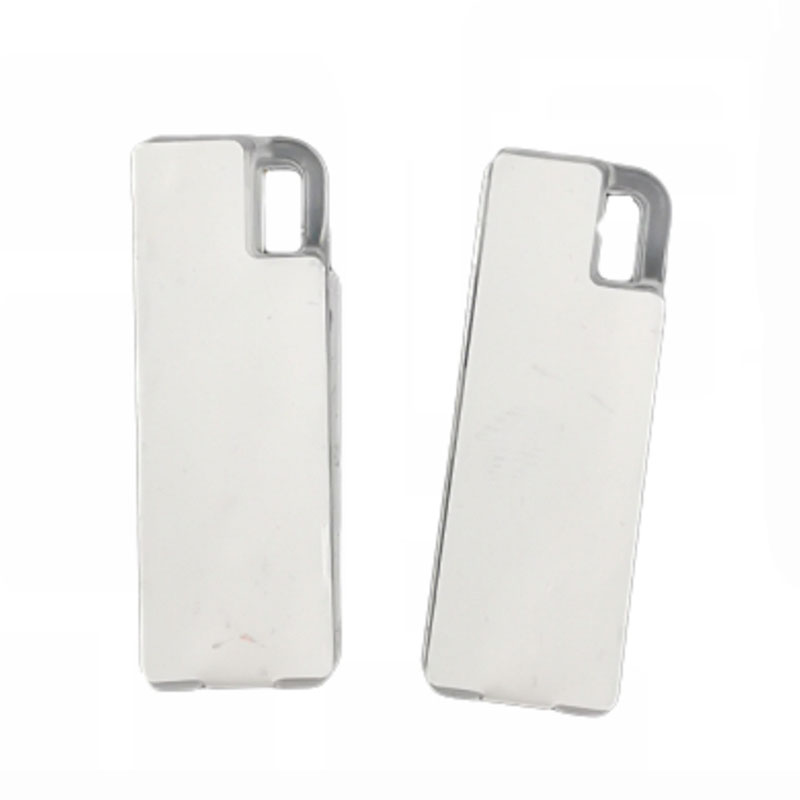

    38x13 UHF RFID Anti Metal Tag

    Dimensions: 38 x 13 x 4.5 mm

    Operating frequency: 865-928MHz

    agreement: ISO18000-6C(EPC Class 1 Gen 2)

    chip: Monza4QT

    Memory Capacity: (EPC:128bit；; User 512bit； TID 96bit)

    Specification
    Product Model FT-3813
    Performance index
    Working mode Read/write
    protection rating IP55
    Applicable environment The best effect is to install it on the metal surface.
    Tag reading distance
    Reading distance Metal surface :5M
    Non-metallic surface :1.5M
    Mechanical and electrical performance
    Material ABS
    Working temperature -20oC to 70oC
    Installation method Mechanical fix, Adhesive, Ribbon
    Weight 2g
    Packing specification 1125 in a single box
    Boxed size 360 * 260 * 100 mm;
    Weight 2.5kg
