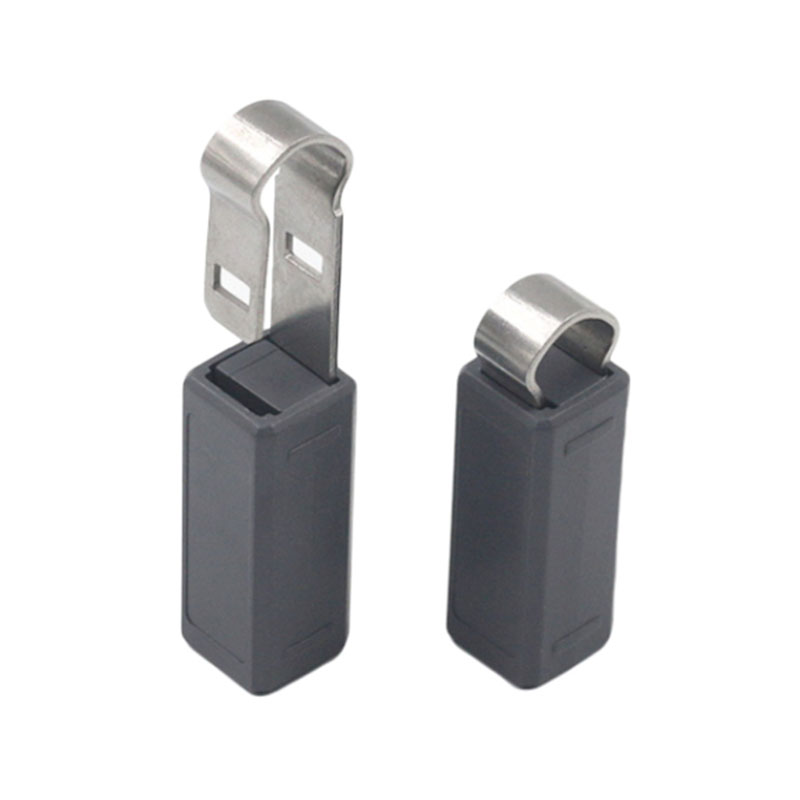

    53x17 UHF RFID tag

    Dimensions: 53 x 17 x 17 mm

    Operating frequency: 865-928MHz

    agreement: ISO18000-6C(EPC Class 1 Gen 2)

    chip: Monza4QT

    Memory Capacity: (EPC:240bit；; User 512bit； TID 64bit)

    Specification
    Product Model FT-5317
    Performance index
    Working mode Read/write
    protection rating IP55
    Applicable environment The best effect is to install it on the metal surface.
    Tag reading distance
    Reading distance Metal surface:10M
    Non-metallic surface:1M
    Mechanical and electrical performance
    Material ABS
    Working temperature -30oC to 70oC
    Storage temperature -30°C to 70°C
    Installation method Locks, ties
    Weight 22g
    Packing specification 150 in a single box
    Boxed size 360 * 260 * 100 mm;
    Weight 3.6kg
