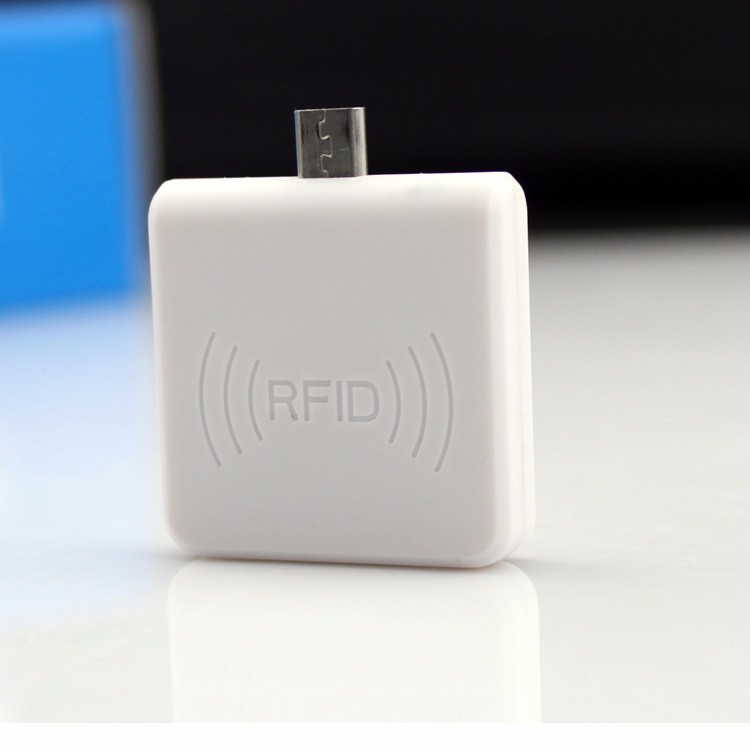

    USB OTG RFID Mini Reader

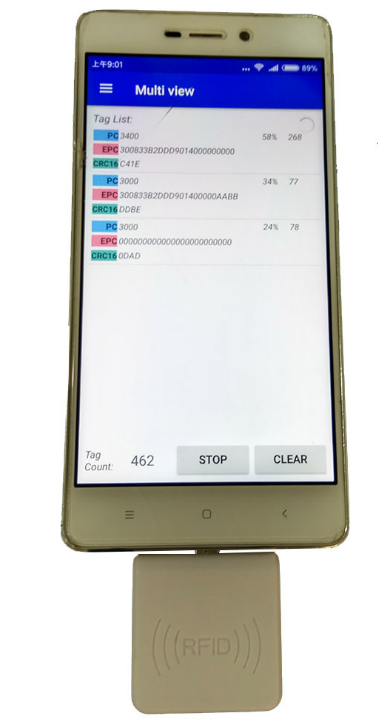

    FH-902 is designed for Android OS, it connected to Android device via mini USB interface, support Android OTG device only. We supply an App for tag data process--Read/Write/Lock/Kill, read range about 50-100cm,





    FH902 USB OTG Reader

    FH-902 USB OTG reader is designed for a Anroid platform, this small portable reader which work with android  mobile with App support,  application for:
    1. Library management
    2. Assets management
    3. Office files tracking
    4. Retail shop
    5. Assets tracking
    6. Outdoor/Exhebition e-ticket checking
    7. Personal  management
    8. Logistics
    ...
    Basic our reader you can development own application, our reader advantage:
    1. Read range: up to 150cm
    2. Tiny size
    3. Easy to be used, you just need a Android mobile
    4. Save you cost in portable reader purchase
    5. App demo and SDK free support
    6. OEM order acceptable

    ITEM DESCRIPTION
    Work frequency        860-960MHz
    Protocol ISO18000-6C(EPC GEN2)
    Power supply By Mobile
    Work current 200mA(Card reading)
    Reader size    35*35*8mm
    Work temp. -10℃~55℃
    Storge temp. -20℃~75℃
    Indicator light Red light flashing if reading tag
    Read range  Up to 1.5 meter(by Alien 9662 chip)
    App support  Demo Android APP & SDK supply
