    RFID Seal Port Desktop Reader

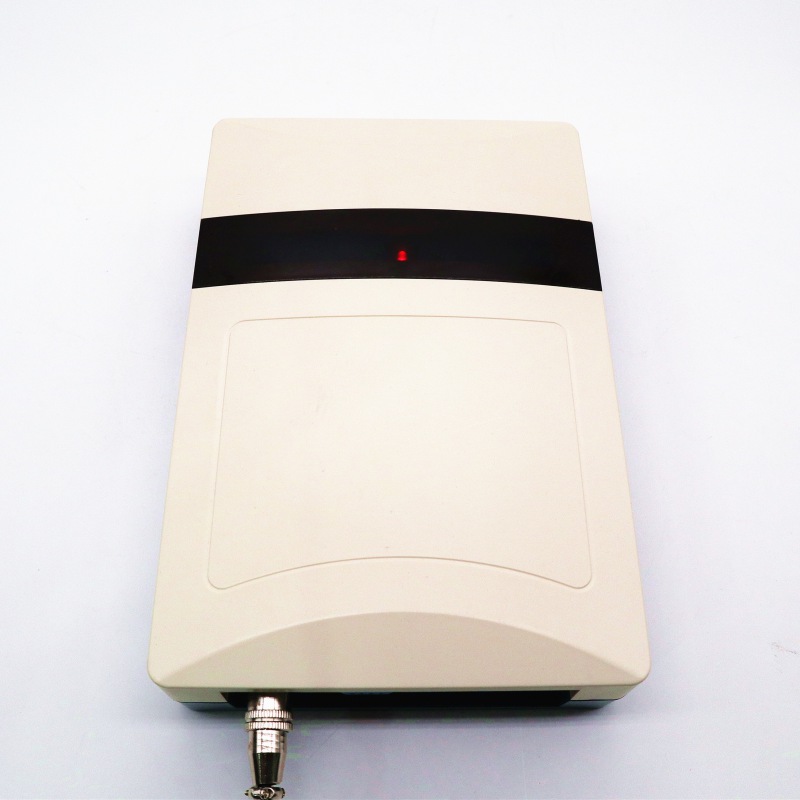

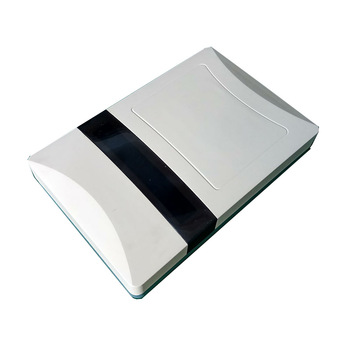

    FD-601 is designed for UHF RFID tag encoding, built-in 2dBi antenna, let it get strong EM field, it's good at small size RFID tag reading and writing.FD-601 with seal port and Ethernet port for network communication. Free SDK and Demo software for customer software development.


    Specification

    Specification

    Model#

    FD-601

    Performance Index

    Frequency range

    865-868MHz

    FM mode

    FHSS or fixed frequency, set by the software

    RF output

    30dBm adjustable

    Communication interface

    TCP/IP, RS232

    Application software

    Provide with API SDK and C##, VC, VB, Java application routines

    Tag Operation Performance

    Reading distance

    Built-in 2dBi ceramics antenna, Read>50mm, Write>20mm

    Air interface

    EPC global UHF ISO-18000-6C(EPC G2),ISO-18000-6B

    Mechanical and Electrical Performance

    Dimension

    209*138*33mm

    Power supply

    9-12V

    Weight

    450g

    Humidity

    5% to 95%, non-condensing

    Protection grade

    IEC IP52

    Operation temperature

    -20 ºC to +60  ºC

    Storage temperature

    -40°C to 80°C
