RFID Middle Range Integrated Reader

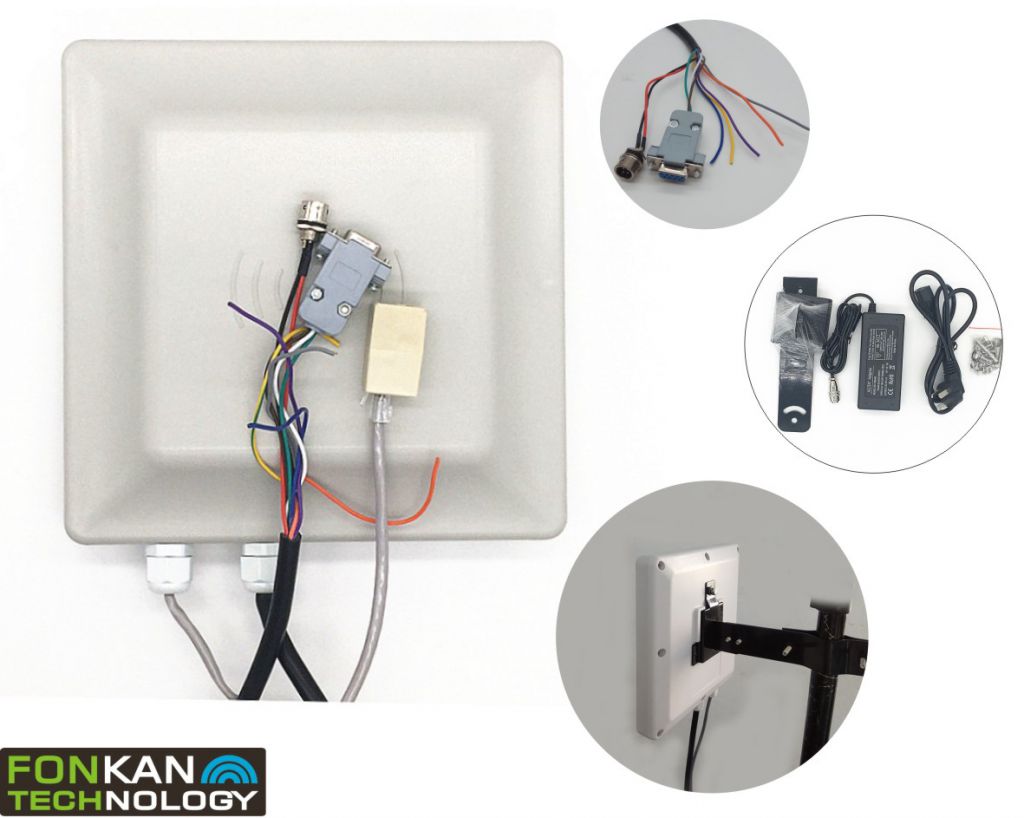

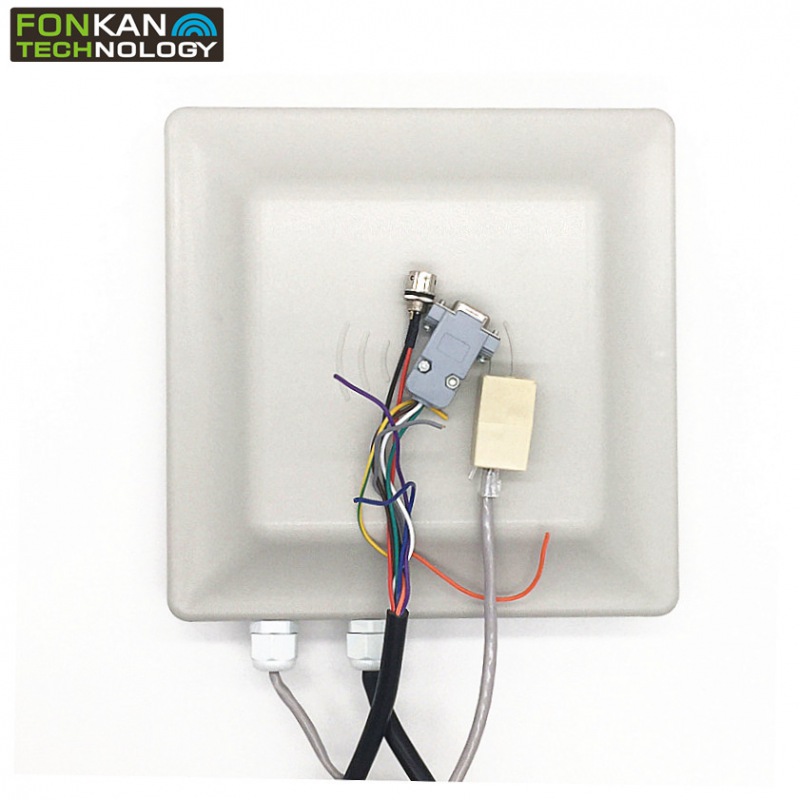

UHF RFID Middle Range Reader FI-801
Based on independent intellectual property development, adapt reader to work with global frequency range.
Application: Parking lot, Logistics, Access control, Electronic security, Manufacturing automation and Transportation etc.
RF output power 30dbm adjustable, support multi work modes (auto, command, triggering);
Based on independent intellectual property development, adapt reader to work with global frequency range.
Application: Parking lot, Logistics, Access control, Electronic security, Manufacturing automation and Transportation etc.
RF output power 30dbm adjustable, support multi work modes (auto, command, triggering);
| Model# | FI-801 |
| Frequency range | 902-928MHZ(or customized) |
| FM mode | FHSS or fixed frequency, set by the software |
| RF output | 30dBm adjustable |
| Communication interface | RS232,RS485,Wiegand26/34, TCP/IP, WiFi/4G(optional) |
| Communication rate | Serial port 9600~115200bps |
| GP I/O interface | 12 pin + 4 pin |
| Power dissipation | average<10W |
| Application software | Provide with API SDK and VC, VB, Java application routines |
| Reading distance | 3~6m equipped with 8dbi antenna (tag dependent) |
| Air interface | EPC global UHF ISO-18000-6C(EPC G2),ISO-18000-6B |
| Dimension | 235(L)*235(W)*58(H)mm |
| Power supply | Equipped with power convertor 220V AC input, +9V/3A DC output |
| Weight | 1KG |
| Humidity | 5% to 95%, non-condensing |
| Protection grade | IEC IP54 |
| Operation temperature | -20 ºC to +60 ºC |
